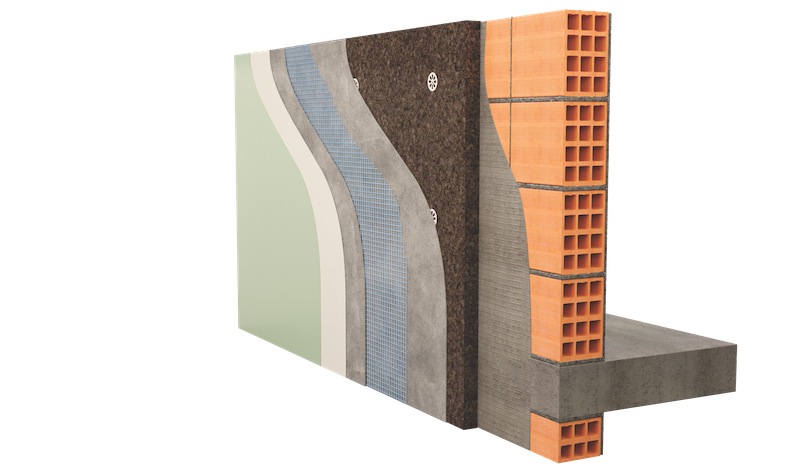

ETICS / EIFS

Solution Description

Thermal and acoustic insulation of exterior walls with ThermaCork by the outside of wall - External Thermal Insulation System

Technical Features

STANDARD GRADE THERMACORK

Density: 7lb/ft3
Thermal conductivity: R4/inch, λ = 0,037 to 0,040 W/m°C

Bending Resistance: ≥ 1,8x106 kg/m2
Compression resistance at 10%: ≥ 100 KPa
Perpendicular Face Resistance: declared TR50 (test results 60 KPa)
Optimal behaviour in large temperature range: -180°C a 120°C
Does not absorb water by capillary action
Excellent soundproofing
Fire Resistance: Class B
Moisture factor resistance: MU 20



Environmental Features

- 100% natural and additive-free industrial process

- Durability of 50 to 60 years without loss of characteristics

- Totally recyclable

- Sink CO2 (CARBON NEGATIVE)

- Low embodied energy

- No emission of harmful compounds for indoor air quality



Recommendations for Application

Fix ThermaCork to the outer surface of the support through the ETICS system. Follow the mortar manufacturer's system instructions.


DOUBLE WALL WITH INSULATION PARTIALLY FILLING THE CAVITY



Solution Description

Thermal and acoustic insulation of double exterior walls with ThermaCork, partially filling the cavity.



Technical Features

STANDARD GRADE THERMACORK

Density: 7lb/ft3
Thermal conductivity: R4/inch, λ = 0,037 to 0,040 W/m°C

Airborne Sound Insulation Index: Rw = 53 dB
Excellent thermal lag
Excellent soundproofing
Optimal behaviour in large temperature range: -180°C a 120°C
Bending Resistance: ≥ 1,8x104 kg/m2
Compression resistance at 10%: ≥ 100 KPa
Fire Resistance: Class B



Environmental Features

- 100% natural and additive-free industrial process

- Durability of 50 to 60 years without loss of characteristics

- Totally recyclable

- Sink CO2 (CARBON NEGATIVE)

- Low embodied energy

- No emission of harmful compounds for indoor air quality



Recommendations for Application

Partially fill the cavity between double brick walls with ThermaCork glued on the internal wall.


EXTERIOR CLADDING - CORK AT SIGHT



SOLUTION DESCRIPTION

Façade cladding with ThermaCork Facade as exterior wall finish, with the natural look of cork.

TECHNICAL FEATURES

FACADE GRADE THERMACORK

Density: 10lb/ft3
Thermal conductivity: R 3.4/inch


Optimal behaviour in large temperature range (-180°C a 120°C)
Compression resistance at 10%: 180KPa
Water absorption by partial immersion: 0,30 kg/m2
Excellent soundproofing



ENVIRONMENTAL FEATURES

- 100% natural and additive-free industrial process
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality



RECOMMENDATIONS FOR APPLICATION

Glued fixation (adhesive) of ThermaCork Facade boards directly to support using Secil Lime Plaster.


EXTERIOR CLADDING - CORK AT SIGHT


TECHNICAL FEATURES

FACADE GRADE THERMACORK

Density: 10lb/ft3
Thermal conductivity: R 3.4/inch
Optimal behaviour in large temperature range (-180°C a 120°C)
Compression resistance at 10%: 180KPa
Water absorption by partial immersion: 0,30 kg/m2
Excellent soundproofing



ENVIRONMENTAL FEATURES

- 100% natural and additive-free industrial process
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality



RECOMMENDATIONS FOR APPLICATION

Applied over PROSOCO Cat 5 system. See installation instructions.


VENTILATED FAÇADE - For metal or wood rain screen applications



SOLUTION DESCRIPTION

Thermal and acoustic insulation of exterior walls with ThermaCork by the outside of wall.

TECHNICAL FEATURES

STANDARD GRADE THERMACORK

Density: 7lb/ft3
Thermal conductivity: R4/inch, λ = 0,037 to 0,040 W/m°C

Compression resistance at 10%: ≥ 100 KPa
Perpendicular Face Resistance: declared TR50 (test results 60 KPa)
Optimal behaviour in large temperature range: -180°C a 120°C
Does not absorb water by capillary action
Excellent soundproofing
Fire Resistance: Class B
Moisture factor resistance: MU 20



ENVIRONMENTAL FEATURES

- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality



RECOMMENDATIONS FOR APPLICATION

Fix ThermaCork to the outer surface of the support and add the ventilated façade system.

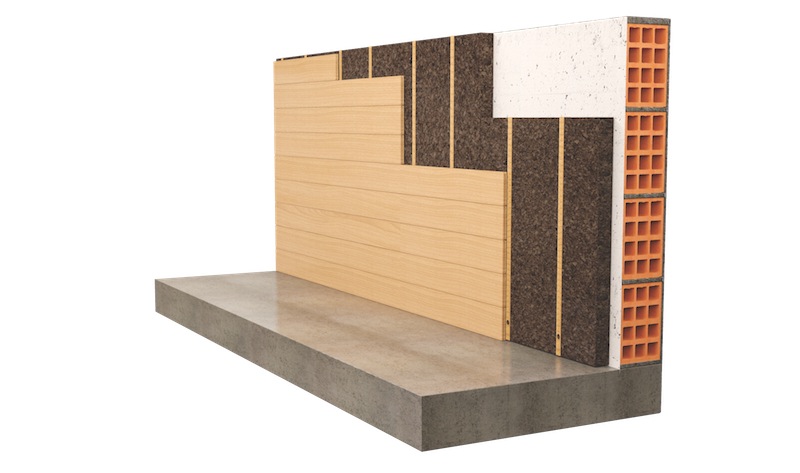

SUPPORT FOR WOODEN WAINSCOT - Interior insulation on an exterior wall



SOLUTION DESCRIPTION

Thermal and acoustic insulation using Lambourde System simultaneously acting as sound insulation and reducing heat flow. Ideal for rehabilitation/renovation.



TECHNICAL FEATURES

STANDARD GRADE THERMACORK

Density: 7lb/ft3
Thermal conductivity: R4/inch, λ = 0,037 to 0,040 W/m°C

Compression resistance at 10%: ≥ 100 KPa
Excellent dimensional stability
Fire Resistance: Class B



ENVIRONMENTAL FEATURES

- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality



PRODUCT DIMENSIONS

Standard: 1000x500x [40 to 100mm] with two OSB strips embedded in the ThermaCork



RECOMMENDATIONS FOR APPLICATION

Fix Lambourde board to wall for subsequent placement of wooden paneling or other.


SUPPORT FOR GYPSUM BOARD - Interior insulation on an exterior wall



SOLUTION DESCRIPTION

Thermal and acoustic insulation using Lambourde System simultaneously acting as sound insulation and reducing heat flow. Ideal for rehabilitation/renovation.


TECHNICAL FEATURES

STANDARD GRADE THERMACORK

Density: 7lb/ft3
Thermal conductivity: R4/inch, λ = 0,037 to 0,040 W/m°C

Compression resistance at 10%: ≥ 100 KPa
Excellent dimensional stability
Fire Resistance: Euroclasse E



ENVIRONMENTAL FEATURES

- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality



PRODUCT DIMENSIONS

Standard: 1000x500x [40 to 100mm] with two OSB strips embedded in the ThermaCork



RECOMMENDATIONS FOR APPLICATION

Fix Lambourde board to wall for subsequent placement of gypsum board or other.
