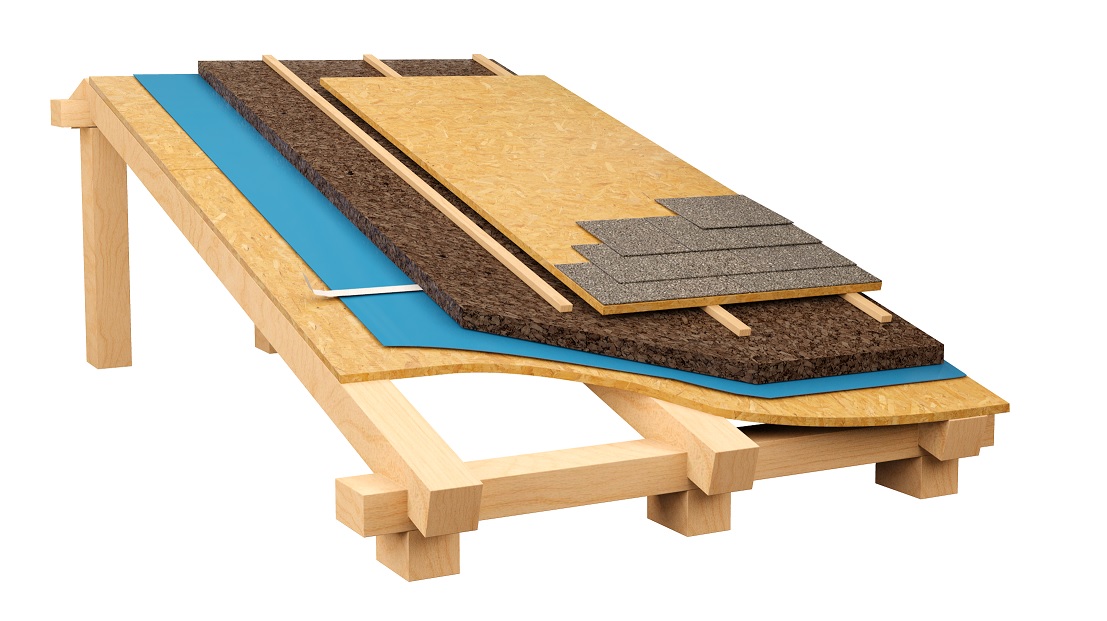

PITCHED ROOF WITH Weather Barrier



SOLUTION DESCRIPTION

Thermal and acoustic insulation of pitched roofs with Weather Barrier

TECHNICAL FEATURES

STANDARD GRADE THERMACORK

Density: 7lb/ft3
Thermal conductivity: R4/inch, λ = 0,037 to 0,040 W/m°C
Excellent thermal lag
Excellent soundproofing
Compression resistance at 10%: ≥ 100 KPa
Optimal behaviour in large temperature range: -180°C a 120°C
Does not absorb water by capillary action
Fire Resistance: Class B

ENVIRONMENTAL FEATURES

- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality

RECOMMENDATIONS FOR APPLICATION

Apply the Expanded Insulation on top of weather barrier that is covering sheathing.

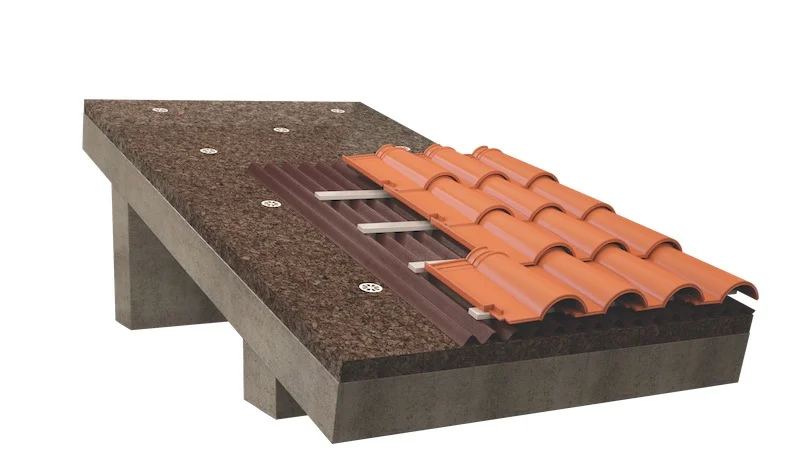

PITCHED ROOF WITH CORRUGATED ROOFING SYSTEM


SOLUTION DESCRIPTION

Thermal and acoustic insulation of pitched roofs with ThermaCork between slab and roof.

TECHNICAL FEATURES

STANDARD GRADE THERMACORK

Density: 7lb/ft3
Thermal conductivity: R4/inch, λ = 0,037 to 0,040 W/m°C
Excellent thermal lag
Excellent soundproofing
Compression resistance at 10%: ≥ 100 KPa
Optimal behaviour in large temperature range: -180° a 120°C
Does not absorb water by capillary action
Fire Resistance: Euroclasse E

ENVIRONMENTAL FEATURES

- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality

RECOMMENDATIONS FOR APPLICATION

Apply the ThermaCork between the roof slab and the corrugated roofing system.

Products Used

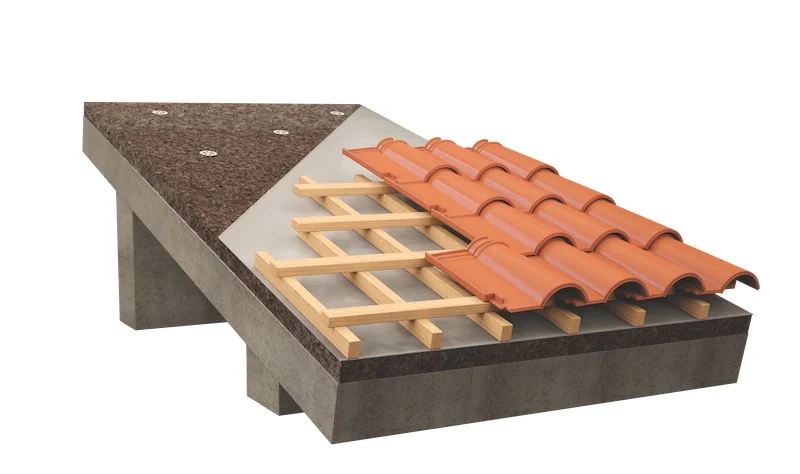

PITCHED ROOF WITH ROOF MEMBRANE



SOLUTION DESCRIPTION

Thermal and acoustic insulation of pitched roofs with ThermaCork between slab and roof.



TECHNICAL FEATURES

STANDARD GRADE THERMACORK

Density: 7lb/ft3
Thermal conductivity: R4/inch, λ = 0,037 to 0,040 W/m°C
Excellent thermal lag
Excellent soundproofing
Compression resistance at 10%: ≥ 100 KPa
Optimal behaviour in large temperature range: -180° a 120°C
Does not absorb water by capillary action
Fire Resistance: Euroclasse E

ENVIRONMENTAL FEATURES

- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality



RECOMMENDATIONS FOR APPLICATION

Apply the ThermaCork between the roof slab and the vapor barrier and later final roofing system.

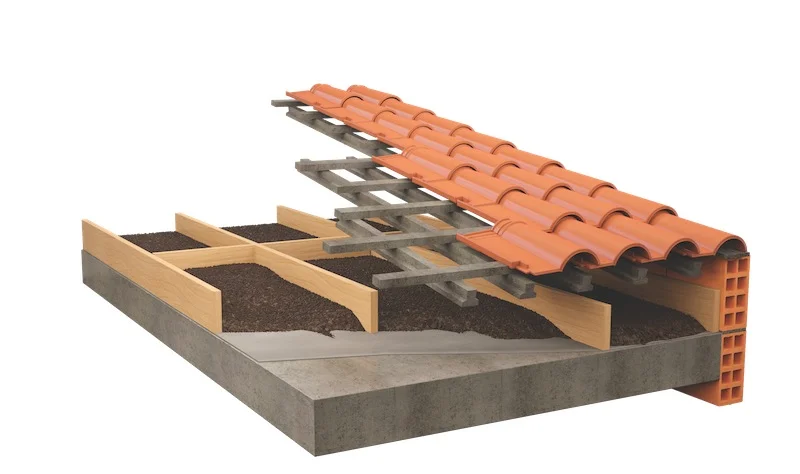

PITCHED ROOF WITH LOOSE FILL INSULATION BETWEEN JOISTS



SOLUTION DESCRIPTION

Thermal and acoustic insulation of pitched roofs with ThermaCork Granules loose filled between joists above slab. Ideal for non-visitable attics.



TECHNICAL FEATURES

THERMACORK GRANUELS

Good acoustic properties
Density: 60 to 70 kg/m3
Thermal conductivity: λ = 0.040 W / m ° C
Economic and easy to apply



ENVIRONMENTAL FEATURES

100% recycling of pre and post-consumer waste
(no virgin materials)



PRODUCT DIMENSIONS

Granules size: 0-3; 3-5; 3-10; 3-15 mm
(possible other calibers)



PACKAGING

250 Lt Big-Bag



RECOMMENDATIONS FOR APPLICATION

Fill the joists cavity with ThermaCork Granules.

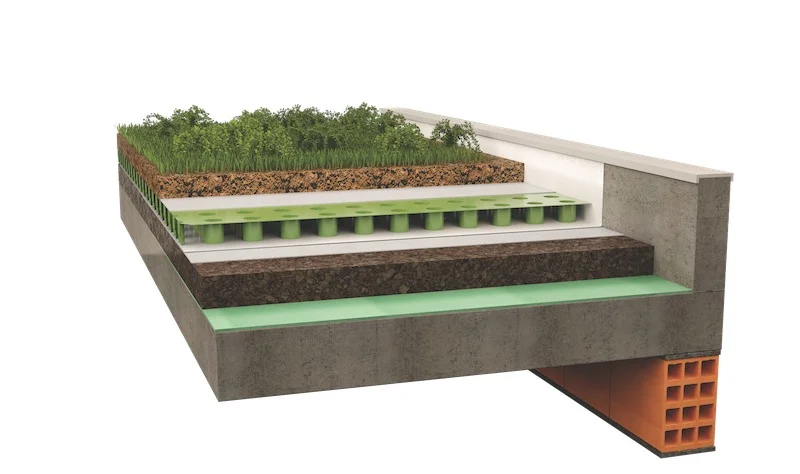

GREEN ROOF



SOLUTION DESCRIPTION

Thermal and acoustic insulation of green roofs, visitable or not, with ThermaCork. The roof provides an aesthetically pleasing landscape.



TECHNICAL FEATURES

STANDARD GRADE THERMACORK

Density: 7lb/ft3
Thermal conductivity: R4/inch, λ = 0,037 to 0,040 W/m°C
Excellent thermal lag
Excellent soundproofing
Compression resistance at 10%: ≥ 100 KPa
Optimal behaviour in large temperature range: -180° a 120°C
Does not absorb water by capillary action
Fire Resistance: Euroclasse E



ENVIRONMENTAL FEATURES

- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality



RECOMMENDATIONS FOR APPLICATION

Apply the ThermaCork and the following layers of the green roofing system as per system owner instructions.

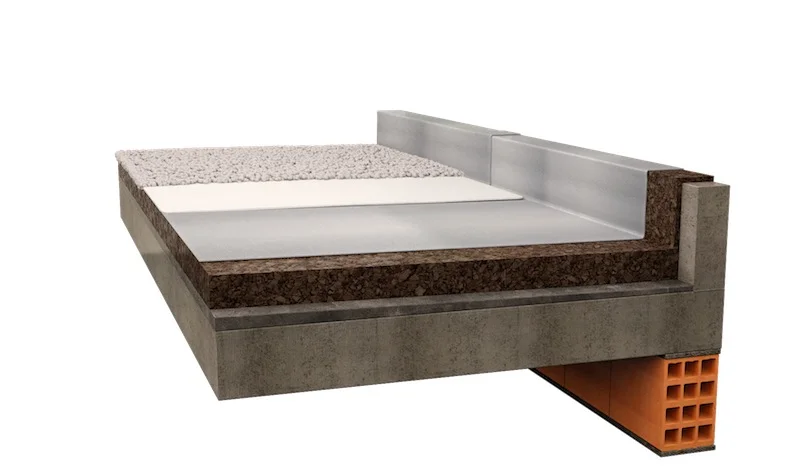

TRADITIONAL FLAT ROOF



SOLUTION DESCRIPTION

Thermal and acoustic insulation of flat roofs, visitable or not, with ThermaCork.



TECHNICAL FEATURES

STANDARD GRADE THERMACORK

Density: 7lb/ft3
Thermal conductivity: R4/inch, λ = 0,037 to 0,040 W/m°C
Excellent thermal lag
Excellent soundproofing
Compression resistance at 10%: ≥ 100 KPa
Optimal behaviour in large temperature range: -180° a 120°C
Does not absorb water by capillary action
Fire Resistance: Euroclasse E



ENVIRONMENTAL FEATURES

- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality



RECOMMENDATIONS FOR APPLICATION

Apply the ThermaCork, waterproofing layer and later protection of the system.

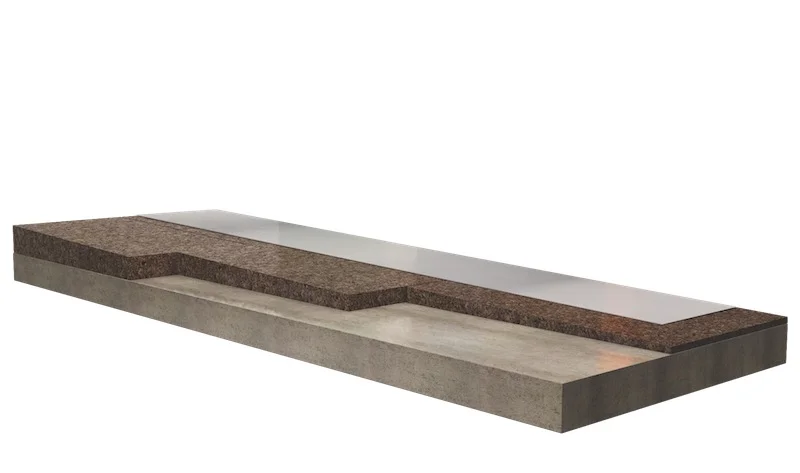

FLAT TAPERED ROOF



SOLUTION DESCRIPTION

Thermal and acoustic insulation of flat roofs, visitable or not, with Tapered ThermaCork. The tapered ThermaCork gives the necessary slope for a proper drainage.



TECHNICAL FEATURES

STANDARD GRADE THERMACORK

Density: 7lb/ft3
Thermal conductivity: R4/inch, λ = 0,037 to 0,040 W/m°C
Excellent thermal lag
Excellent soundproofing
Compression resistance at 10%: ≥ 100 KPa
Optimal behaviour in large temperature range: -180° a 120°C
Does not absorb water by capillary action
Fire Resistance: Euroclasse E



ENVIRONMENTAL FEATURES

- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality



PRODUCT DIMENSIONS

Dimensions: 1000 x 500 mm
Thicknesses for a 1:60 fall:

A: 20/37mm
B: 37/54mm
C: 54/70mm
A1: 70/87mm
B1: 87/104 mm
C1: 104/120mm



RECOMMENDATIONS FOR APPLICATION

Apply theThermaCork, waterproofing layer and later protection of the system.


PITCHED ROOF WITH RIGID INSULATION OVER SLAB



SOLUTION DESCRIPTION

Thermal and acoustic insulation of pitched roofs with ThermaCork above slab. Ideal for non-visitable attics.




TECHNICAL FEATURES

STANDARD GRADE THERMACORK

Density: 7lb/ft3
Thermal conductivity: R4/inch, λ = 0,037 to 0,040 W/m°C
Excellent thermal lag
Excellent soundproofing
Compression resistance at 10%: ≥ 100 KPa
Optimal behaviour in large temperature range: -180°C a 120°C
Does not absorb water by capillary action
Fire Resistance: Euroclasse E



ENVIRONMENTAL FEATURES

- 100% natural and additive-free industrial process
- Durability of 50 to 60 years without loss of characteristics
- Totally recyclable
- Sink CO2 (CARBON NEGATIVE)
- Low embodied energy
- No emission of harmful compounds for indoor air quality



RECOMMENDATIONS FOR APPLICATION

Lay the ThermaCork over the roof slab.
